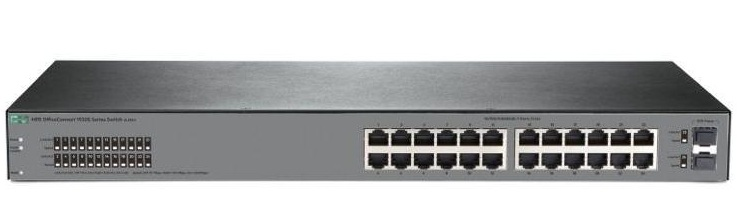

OfficeConnect 1920S là bộ switch mạng cao cấp của HP, chuyên sử dụng cho các doanh nghiệp vừa và nhỏ với nhiều tính năng quản lý cao cấp, dễ dàng sử dụng và hỗ trợ quản lý hệ thống mạng đạt hiệu quả hơn.
OfficeConnect 1920S được trang bị 24 cổng LAN 1Gb/s và 2 cổng SFP 1Gb/s, với lưu lượng switch 52Gb/s và dung lượng gói tin lên tới 38.6Mpps đem lại khả năng truyền tải dữ liệu với tốc độ cao và ổn định.
I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) |
Additional ports and slots | 2 SFP 100/1000 Mbps ports |
Physical characteristics | Dimensions: 17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm) (1U height) Weight: 6 lb (2.72 kg) |
Memory and processor | ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB |
Mounting and enclosure | |
Performance | 100 Mb Latency < 7.0 µs 1000 Mb Latency < 2.0 µs ThrougHPEut up to 38.6 Mpps Switching capacity: 52 Gbps MAC address table size: 8,000 entries |
Environment | Operating temperature: 32°F to 104°F (0°C to 40°C) Operating relative humidity: 5% to 95%, noncondensing Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity:15% to 95% @ 140°F (60°C) Altitude: up to 16,404 ft (5 km) Acoustic: No Fan |
Electrical characteristics | Frequency: 50/60 Hz Voltage: 100 – 240 VAC, rated Maximum power rating: 15.7 W Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated |
Safety | UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 |
Emissions | VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32 |
Device Management | Web browser |
